Automatic Circulation Pump For Heating Systems 15/9G 20/12GF
High Temperature Bathroom Shower Water Heater Automatic Circulation Pump For Heating Systems
Products
Products DETAILS

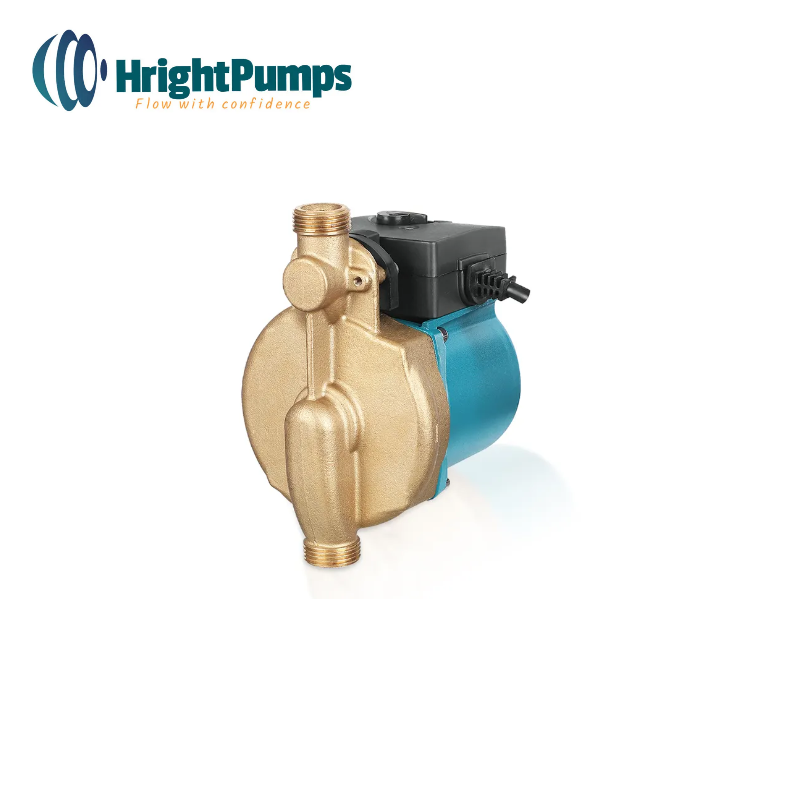

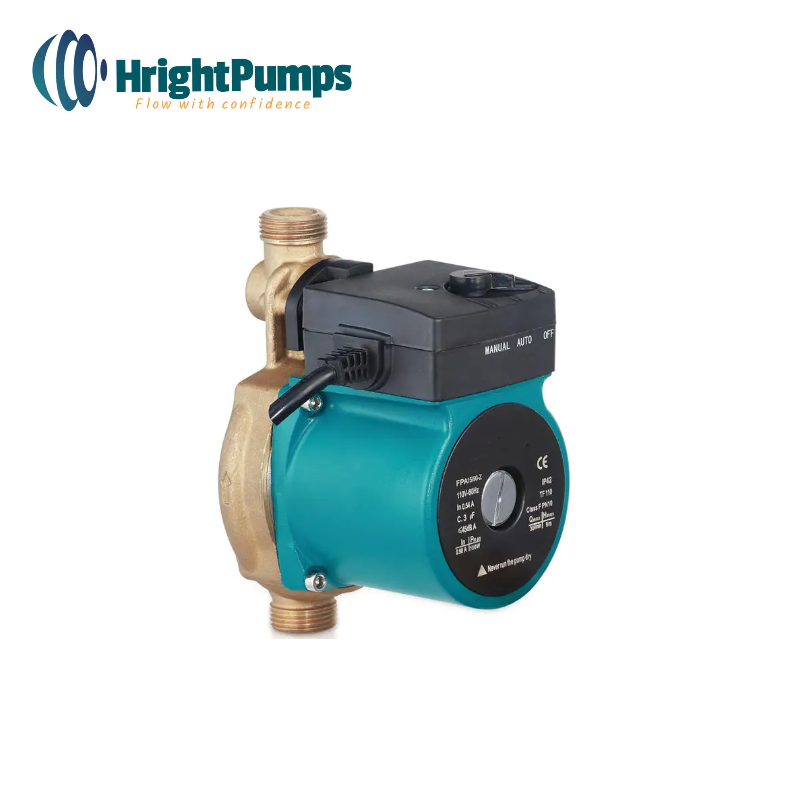

Automatic Circulation Pump For Heating Systems 15/9G 20/12GF
|

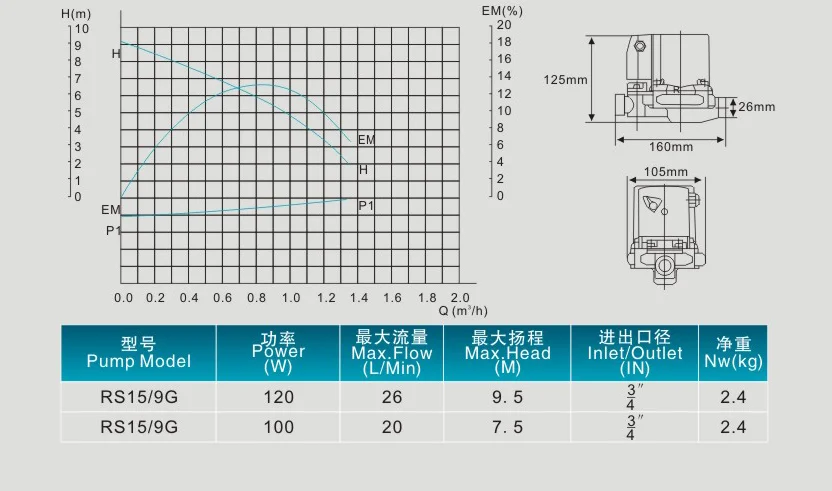

Pump Model |
RS15/9G |
RS15/9G |

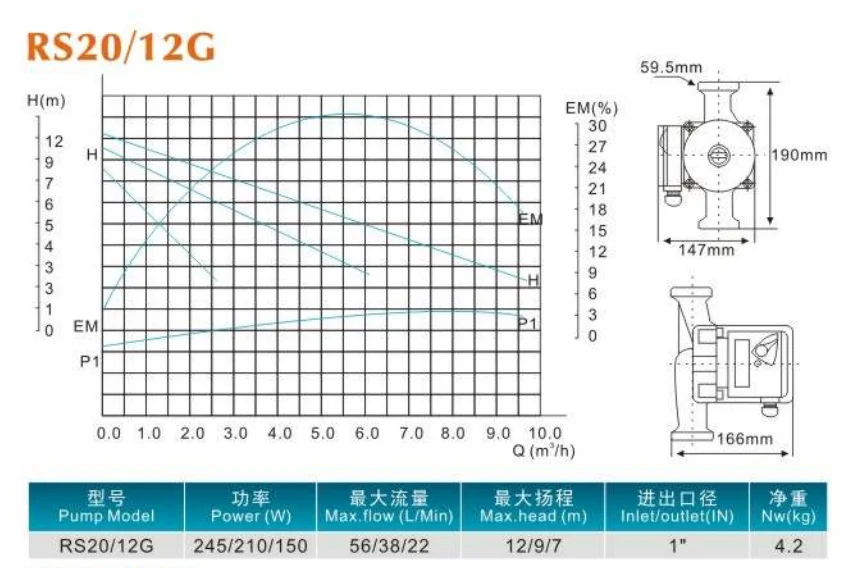

RS20/12GF |
|
|
Power W |
120 |
100 |
245 |
|
|
Max. Flow L/Min |
26 |
20 |
52 |
|
|
Max. Head M |
9.5 |
7.5 |
12 |
|
|
Inlet/Outlet inch |
3/4'' |
3/4'' |
1'' |
|
|
Out Side |
Powder Painting |
Powder Painting |
Powder Painting |
|
|
NW Kg |
2.6 |
2.4 |
4.4 |
|
|

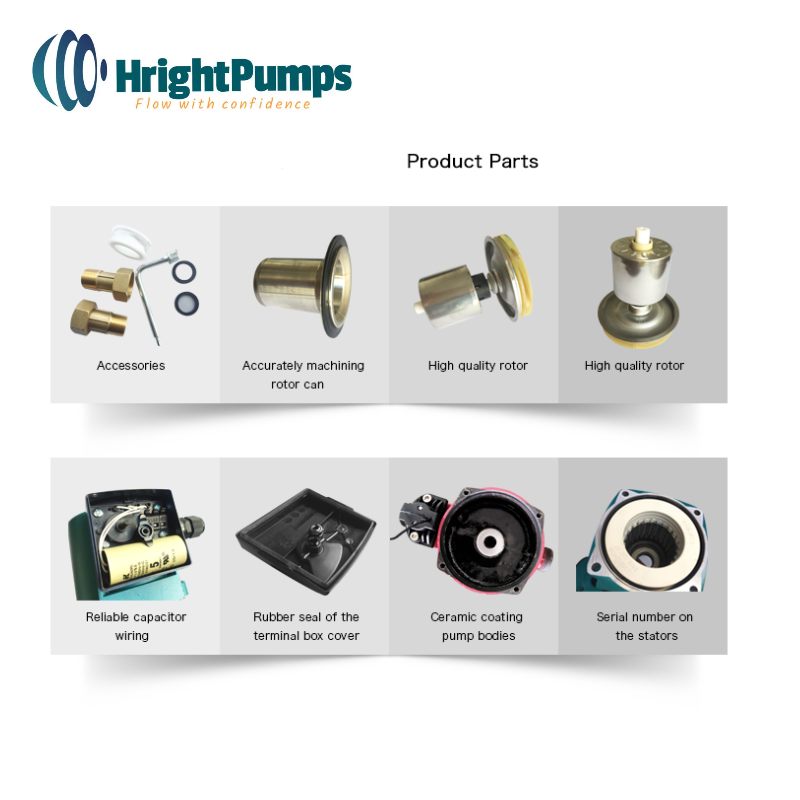

Materials |
Motor Wire |
copper |
||
|
Motor housing |
Aluminum |
|||
|
Rotor can |
Stainless Steel |
|||
|
Impeller |
PP /stainless steel |
|||
|
Pump body |
cast iron |
|||
|
Shaft |
stainless steel |
|||
|
Fluids |
Heating Water or VD12035 |
|||
|
Heating Water |
||||
|
Water/Glycol Mixtures Max. Mixed Ratio 1:1 |
||||
|
Performance |
Fluid Temperature |
-10℃-110℃ |
||
|
Max. working Pressure |
10bar/1MPa |
|||
|
Power |
1～230V,50HZ |
|||
|
Ambient Temperature |
40℃ |
|||
|
Motor |
Degree of Protection |
IP44 |
||
|
Insulation Class |
F |
|||
|
Mounting Positions |
Pump shaft in the horizontal plane |
|||
|
Pump Equipment |
Screwed end single head pump |
|||
|
3 speed control |
||||
|
Cast iron body,130/180mm port to port |
||||
