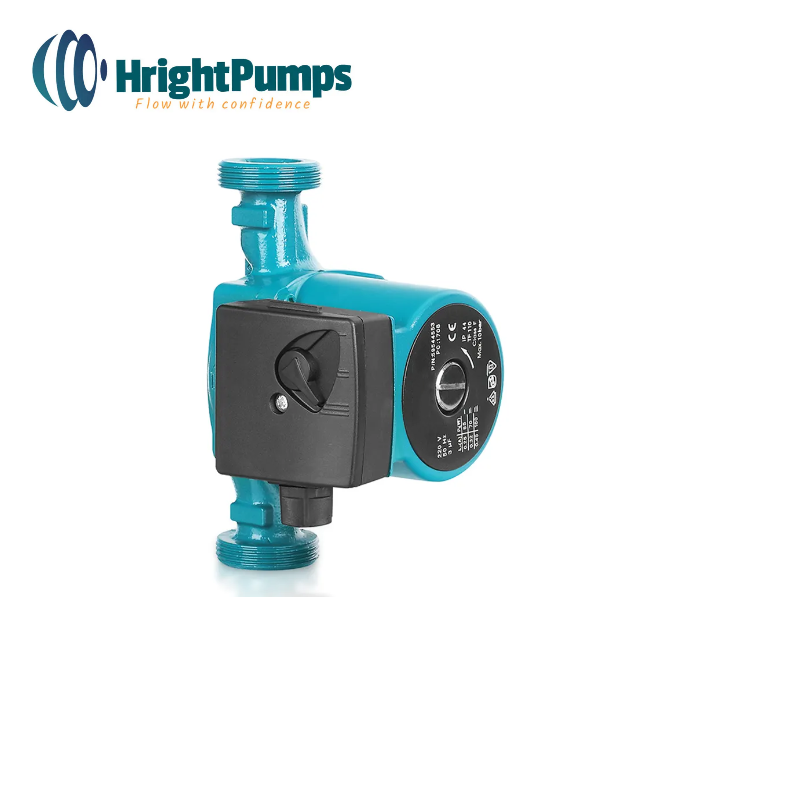

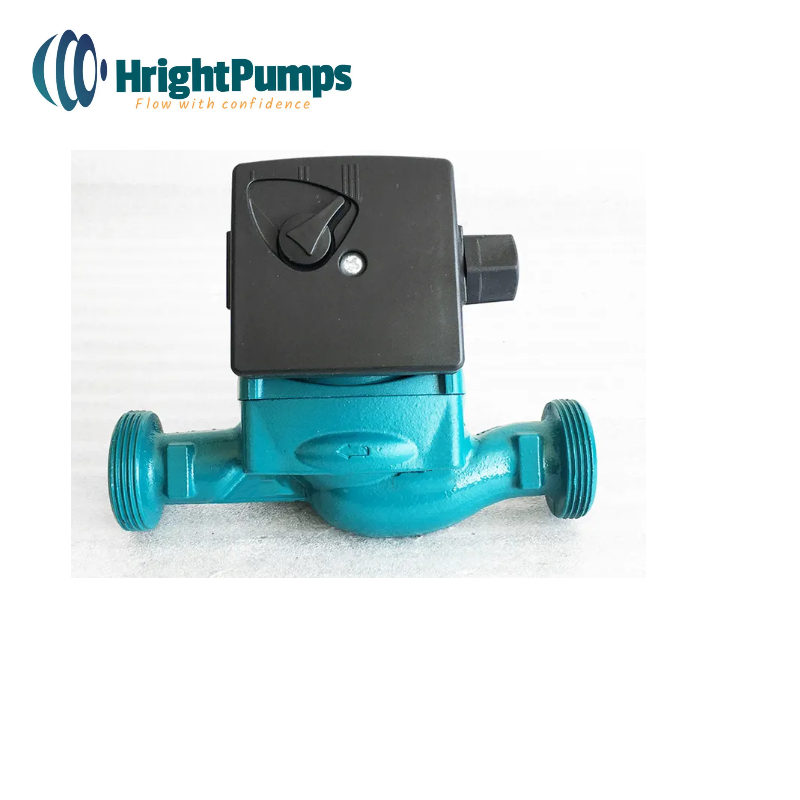

High Pressure Hot Water 3 Speeds Circulator Pump For Household Use 15/6G 25/6G 32/6G

Pump Model

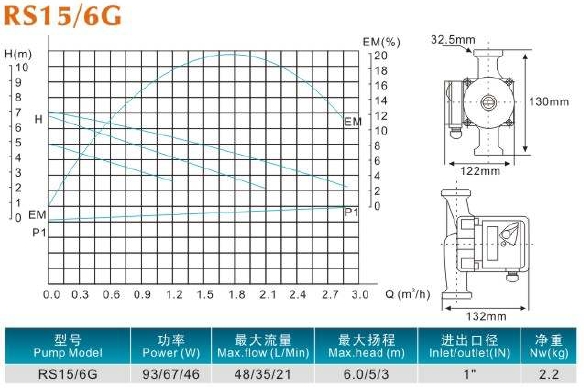

RS15/6G

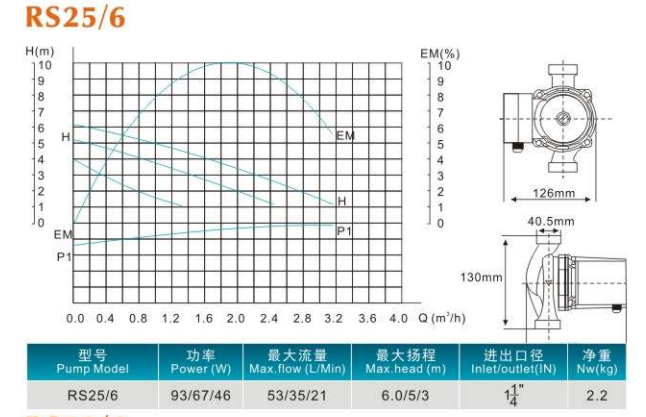

RS25/6G

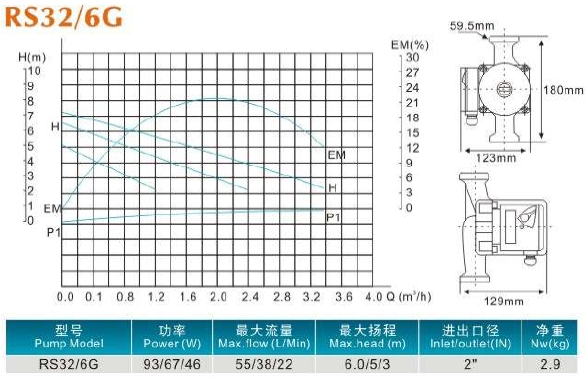

RS32/6G

Power W

93/67/46

93/67/46

93/67/46

Max.FlowL/Min

48/35/21

53/35/21

55/35/22

Max.Head M

6/5/3

6/5/3

6/5/3

Inlet/Outlet inch

1''

1-1/2''

2''

Out Side

Powder Painting

Powder Painting

Powder Painting

NW Kg

2.2

2.3

2.5

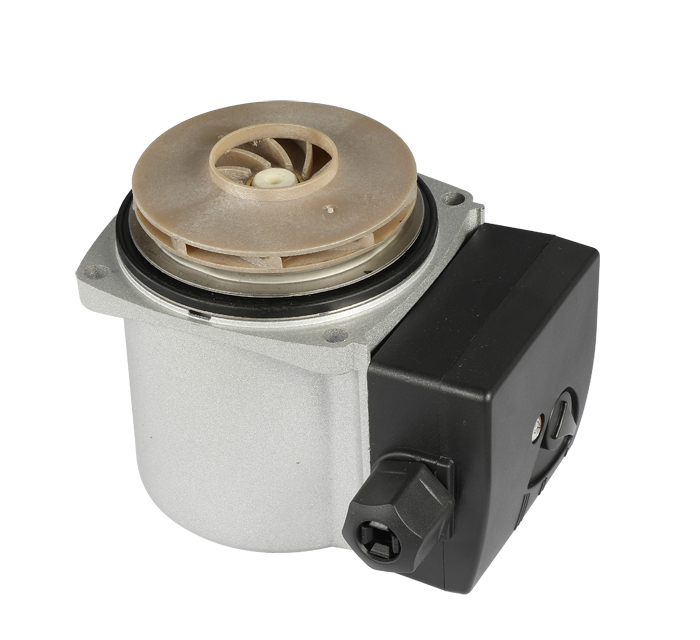

Materials

Motor Wire

copper

Motor housing

Aluminum

Rotor can

Stainless Steel

Impeller

PP /stainless steel

Pump body

cast iron

Shaft

stainless steel

Fluids

Heating Water to VD 12035

Heating Water

Water/Glycol Mixtures Max. Mixed Ratio 1:1

Performance

Fluid Temperature

-10℃-110℃

Max. working Pressure

10bar/1MPa

Power

1～230V,50HZ

Ambient Temperature

40℃

Motor

Degree of Protection

IP44

Insulation Class

F

Mounting Positions

Pump shaft in the horizontal plane

Pump Equipment

Screwed end single head pump

3 speed control

Cast iron body,130/180mm port to port
