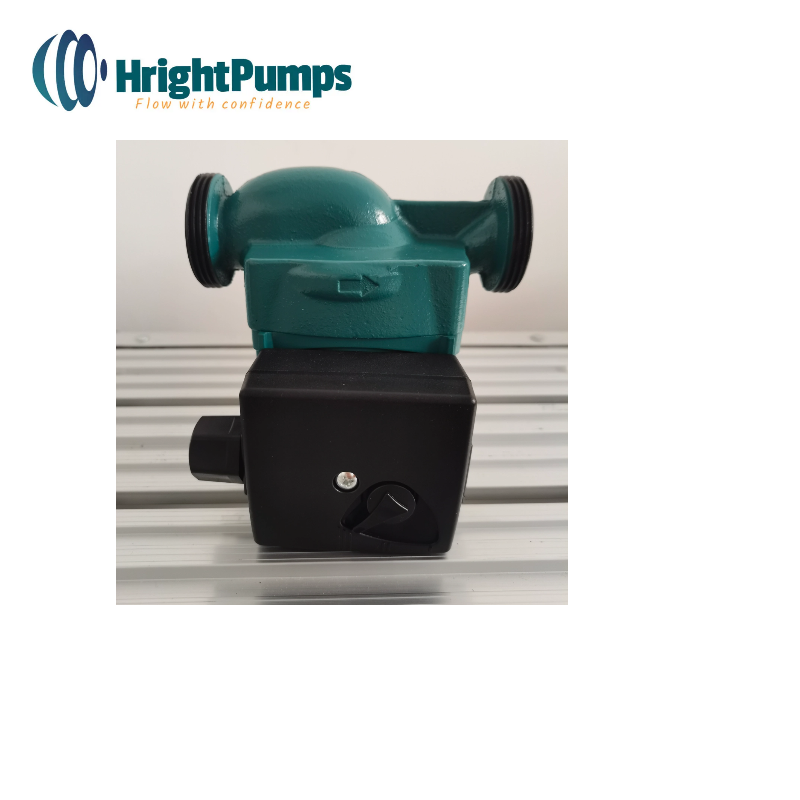

Three Speed Circulation Water Pump For Shower 15/4G 25/4G 32/4G
Low Pressure Home Bathroom Hot Water Pressure Three Speed Circulation Water Pump For Shower
Products
Products DETAILS

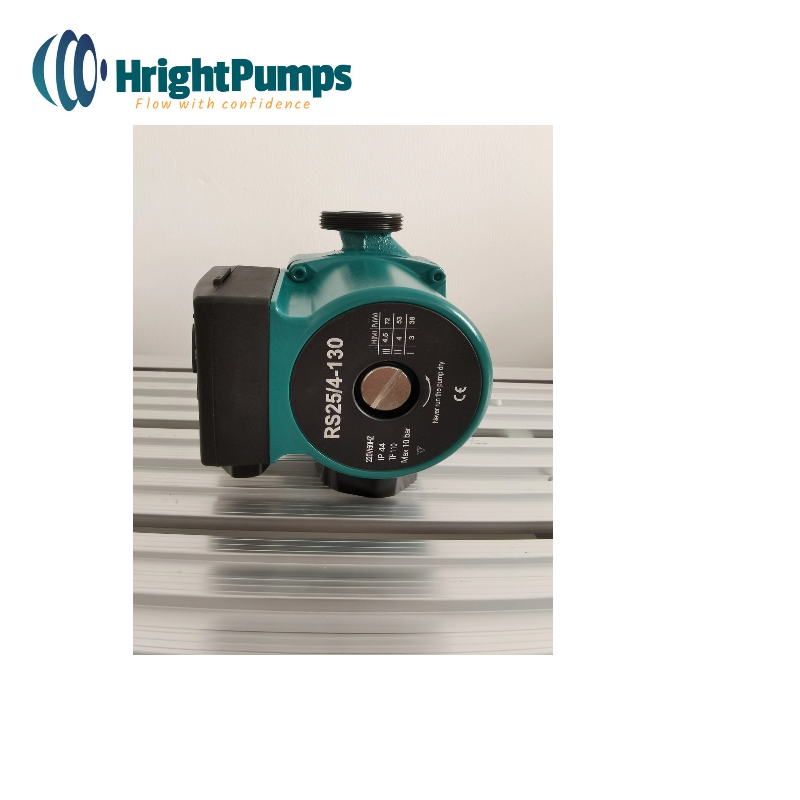

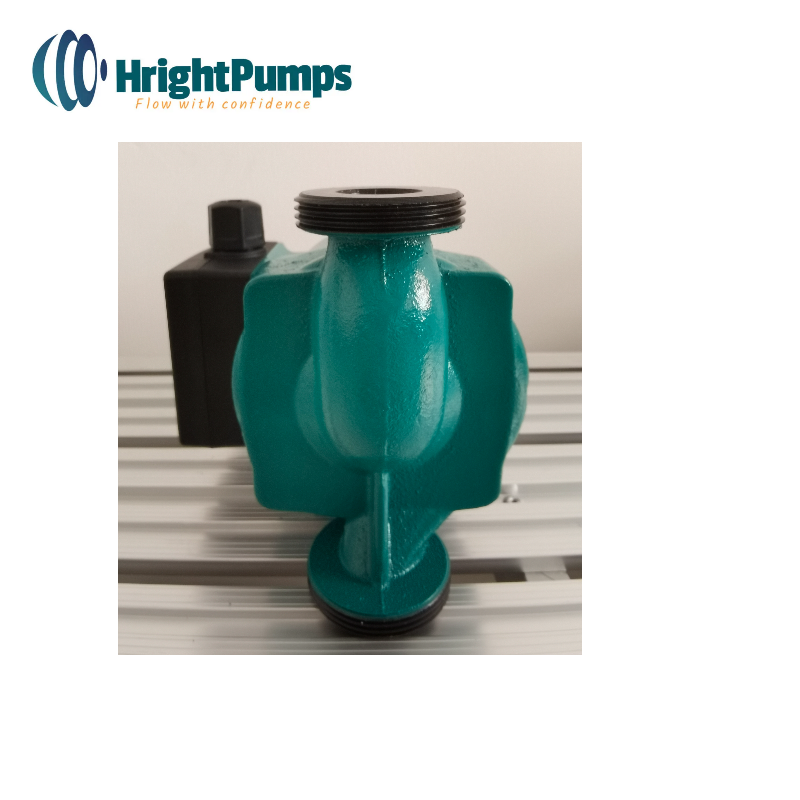

Three Speed Circulation Water Pump For Shower 15/4G 25/4G 32/4G
Pump Model |

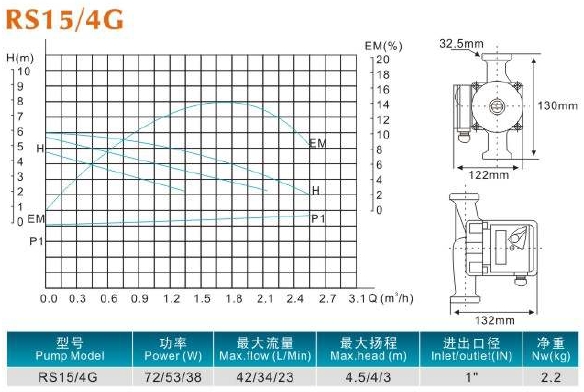

RS15/4G |

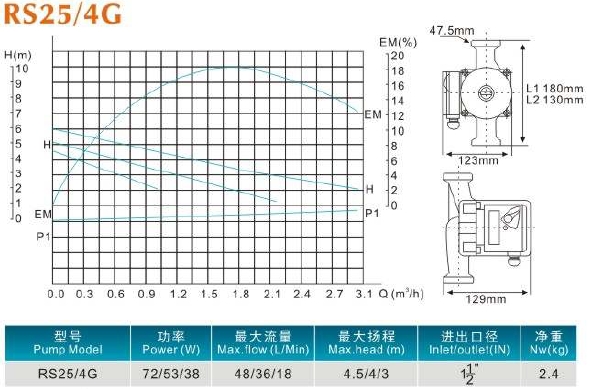

RS25/4G |

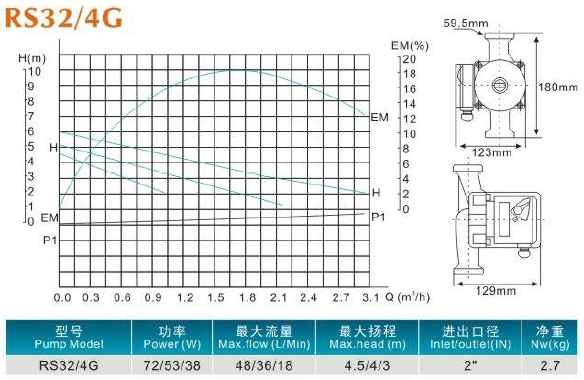

RS32/4G |
|
Power W |
72/53/48 |
72/53/48 |
72/53/48 |
|
Max. Flow L/Min |
42/34/23 |
48/36/18 |
48/36/18 |
|
Max. Head M |
4.5/4/3 |
4.5/4/3 |
4.5/4/3 |
|
Inlet/Outlet inch |
1'' |
1-1/2” |
2'' |
|
Out Side |
Powder Painting |
Powder Painting |
Powder Painting |
|
NW Kg |
2.2 |
2.4 |
2.7 |
|
Materials |
Motor Wire |
copper |
||
Motor housing |
Aluminum |
|||

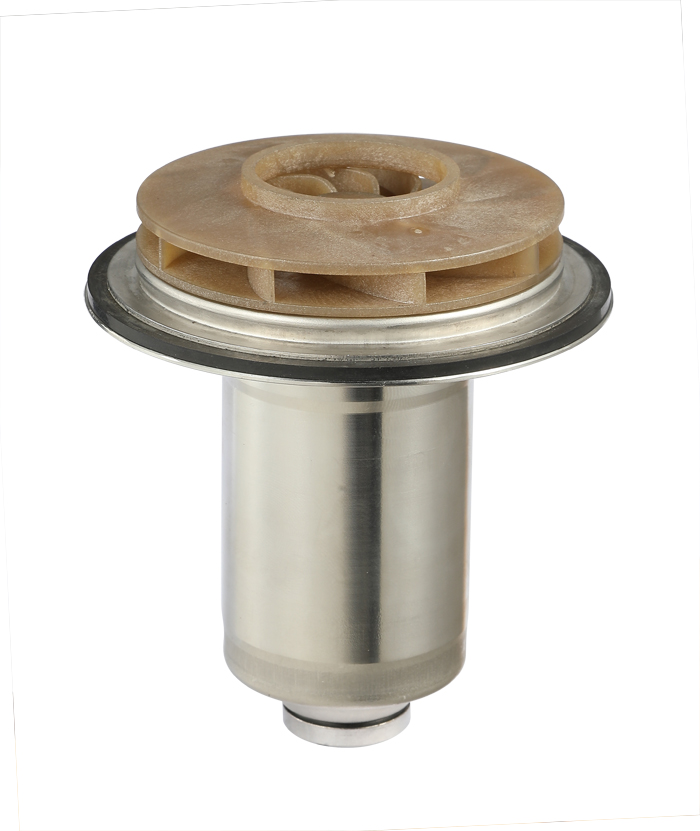

Rotor can |
Stainless Steel |
|||
Impeller |
PP /stainless steel |
|||
Pump body |
cast iron |
|||
Shaft |
stainless steel |
|||
Fluids |
Heating Water or VD12035 |
|||
Heating Water |
||||
Water/Glycol Mixtures Max. Mixed Ratio 1:1 |
||||
Performance |
Fluid Temperature |
-10℃-110℃ |
||
Max. working Pressure |
10bar/1MPa |
|||
Power |
1~230V,50HZ |
|||
Ambient Temperature |
40℃ |
|||
Motor |
Degree of Protection |
IP44 |
||
Insulation Class |
F |
|||
Mounting Positions |
Pump shaft in the horizontal plane |
|||
Pump Equipment |
Screwed end single head pump |
|||
3 speed control |
||||
Cast iron body,130/180mm port to port |
