Home Cast Iron Heating System Electric Boiler Circulating Pumps 20/12G 25/8G 32/8G
Pump Model |

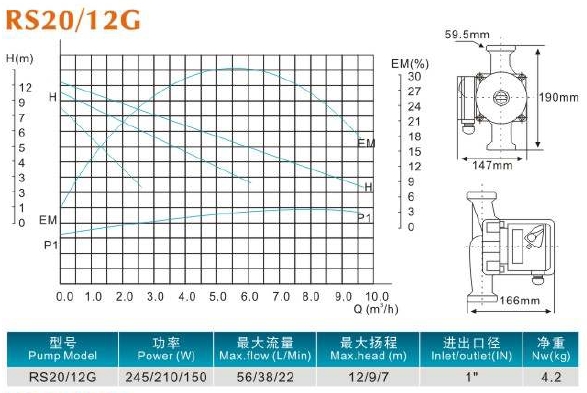

RS20/12G |

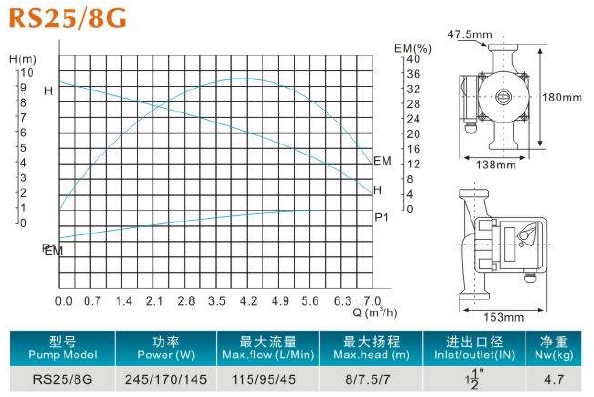

RS25/8G |

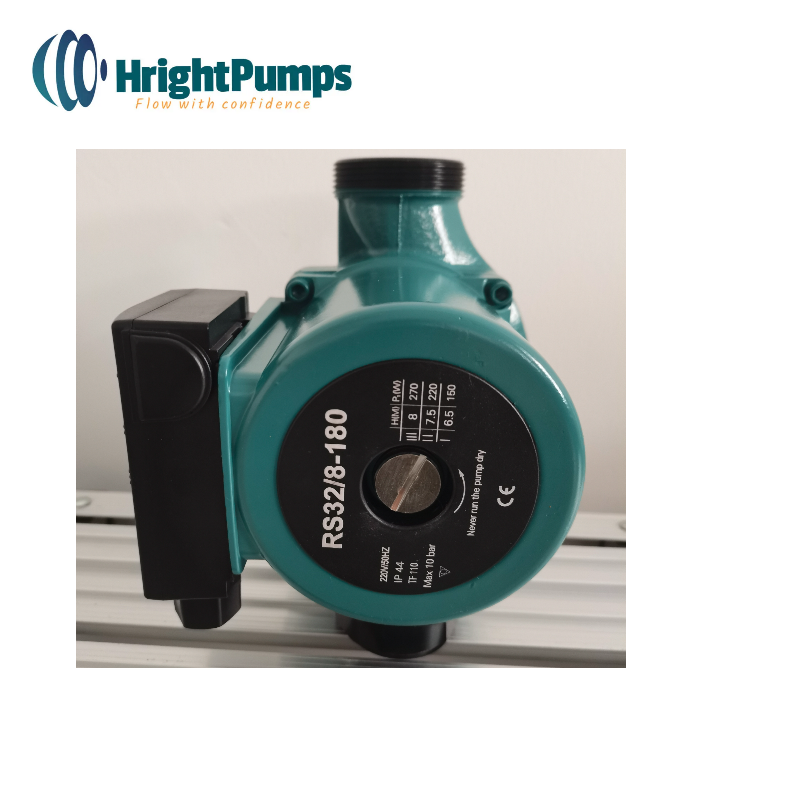

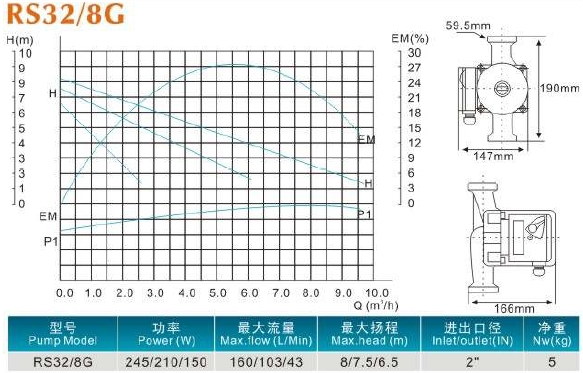

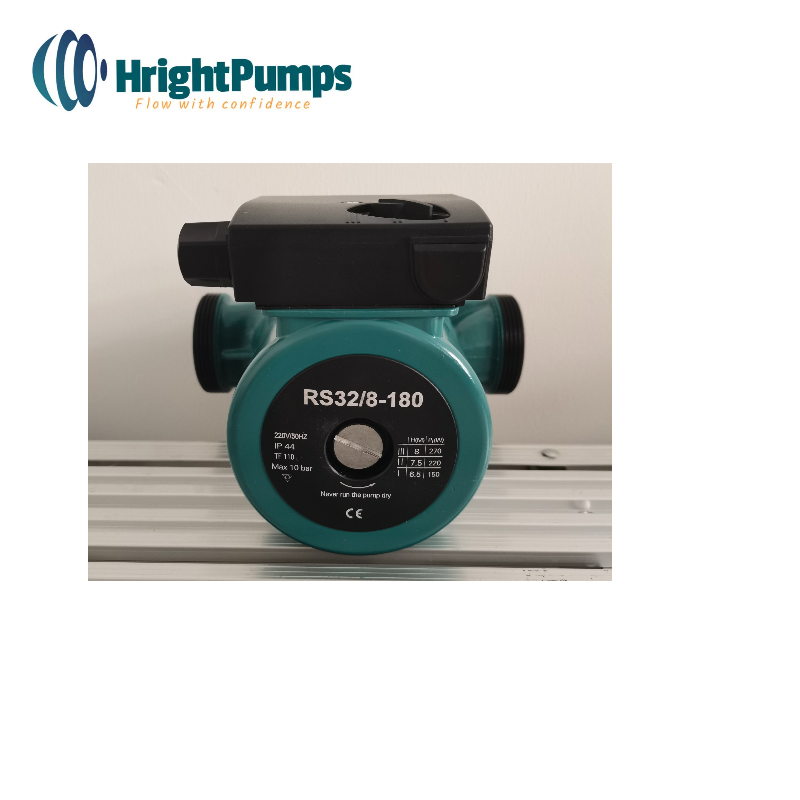

RS32/8G |
|
Power W |
245/210/150 |
245/170/145 |
245/210/150 |
|
Max.FlowL/Min |
56/38/22 |
115/95/45 |
160/103/43 |
|
Max.Head M |
12/9/7 |
8/7.5/7 |
8/7.5/7 |
|
Inlet/Outlet inch |
1'' |
1-1/2'' |
2'' |
|
Out Side |
Powder Painting |
Powder Painting |
Powder Painting |
|
NW Kg |
4.2 |
4.7 |
5 |
|
Materials |
Motor Wire |
copper |
||
Motor housing |
Aluminum |
|||
Rotor can |
Stainless Steel |
|||
Impeller |
PP /stainless steel |
|||
Pump body |
cast iron |
|||
Shaft |
stainless steel |
|||
Fluids |
Heating Water to VD 12035 |
|||
Heating Water |
||||
Water/Glycol Mixtures Max. Mixed Ratio 1:1 |
||||
Performance |
Fluid Temperature |
-10℃-110℃ |
||
Max. working Pressure |
10bar/1MPa |
|||
Power |
1~230V,50HZ |
|||
Ambient Temperature |
40℃ |
|||
Motor |
Degree of Protection |
IP44 |
||
Insulation Class |
F |
|||
Mounting Positions |
Pump shaft in the horizontal plane |
|||
Pump Equipment |
Screwed end single head pump |
|||
3 speed control |
||||
Cast iron body,130/180mm port to port |
